APPLICATIONS

The optics application is known to be a challenging one: samples are very smooth, flat, and sometimes transparent. Only high-end profilometers can image them and meet the tight requirements this field demands. Our experience is in lenses and optical filters for roughness, arrays of micro lenses, and film thickness.

Array of microlenses

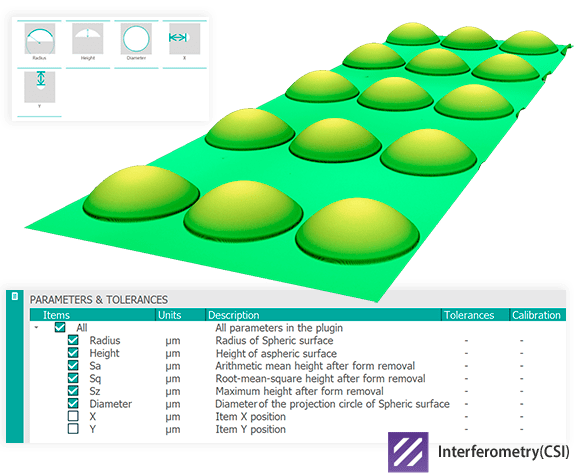

Spherical lenses

With a simpler design and lower manufacture cost, spherical lenses are used in a wide range of applications.

Spheric logo plugin

Dimensions & Roughness parameters Sa, Sq and Sz

Array of microlenses_Spheric

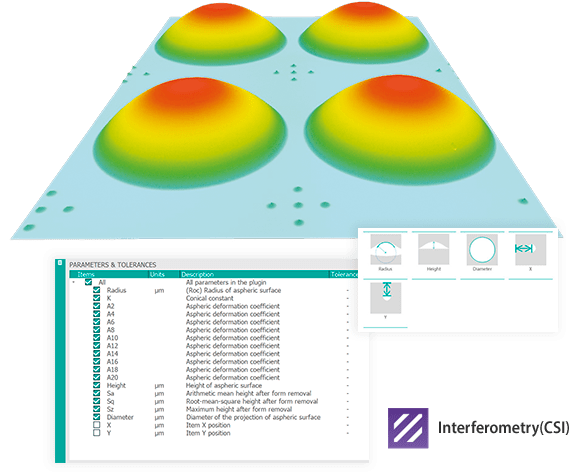

Aspherical lenses

Distinguished by their lower aberrations, aspherical lenses lend themselves to optical designs that look for better performance with fewer elements.

Aspheric logo plugin

Dimensions & 10 aspheric deformation coefficients and Sa, Sq and Sz roughness parameters

Array of microlenses_Aspheric
Array of microlenses_Spheric
Array of microlenses_Aspheric

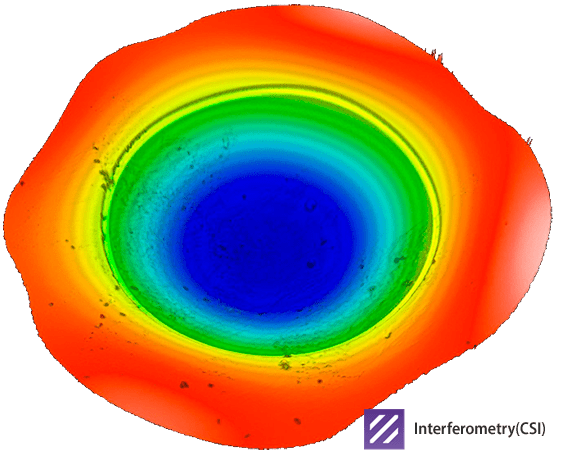

Camera lenses

Volume calculations of the area of interest can be performed in our software SensoVIEW.

Optics camera lenses topo
log66-01l-a-sensoview

SensoVIEW analysis software has very high sensitivity to different dimensions of holes
(this sample has d=2 mm).

Optics camera lenses topo
log66-01l-a-sensoview

SensoVIEW analysis software has very high sensitivity to different dimensions of holes
(this sample has d=2 mm).

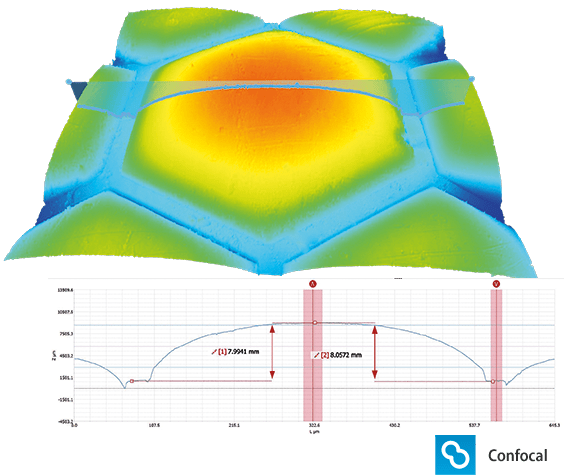

Polygonal lenses

Hexagonal microlenses are a typical geometry used in lens microarrays and they stand out for their high density. Confocal technology is the best technology to measure the high slopes in this polished sample.

Optics polygonal lenses topo
log66-01l-a-sensoview
Optics polygonal lenses topo
