Q vix specifications for Stent and Heart Valve Inspection

Measurement modes

Imaging

Screenshot

Unrolled FOV

Unrolled section

3D Modes

Surface topography

Surface roughness

Coating thickness

Inspection capabilities

Outer surface

Inner surface

Lateral surface

Edges

Measurable stent

Stent types	Metallic, color coated, polymer, welded, with grooves and braided
OD	1 – 32 mm
Length	Up to 200mm

Light sources

Flexible illumination	Up to 9 light sources available
Standard illumination	TOP white light, BACK green light and two SIDE white lights

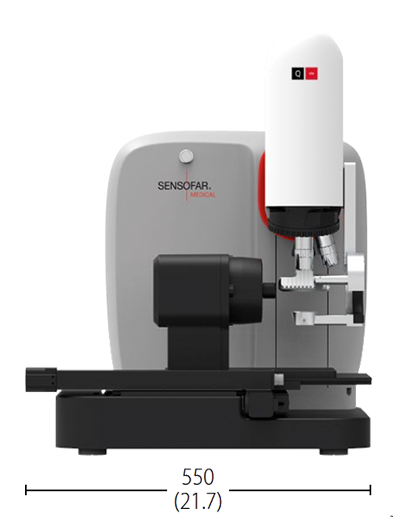

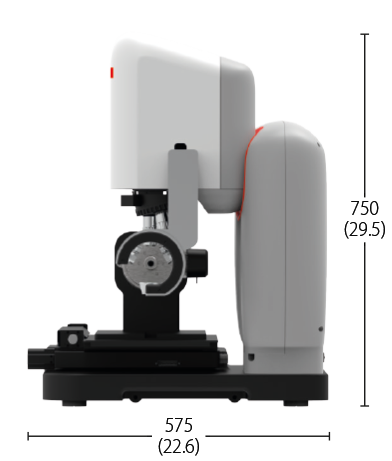

Dimensions

Sensorhead & Controller

Imaging Objectives

MAG	2X	5X	10X
Numerical Aperture	0.055	0.14	0.28
Working Distance (mm)	34	34	34
Horizontal FOV (mm)	9	3.6	1.8
Spatial sampling (µm)^[1]	4.4	1.76	0.88
Optical resolution (µm)^[2]	2.77	1.09	0.54
Unrolled acquisition rate (mm²/s)^[3]	120	20

1 Pixel size on the imaged surface. 2 L&S: Line and Space (500nm wavelength)
3 Frame rate 3000 fps.

MAG	10XDI	20XDI	50XDI
Numerical Aperture	0.3	0.4	0.55
Working Distance (mm)	7.4	4.7	3.4
Horizontal FOV (mm)	1.8	0.9	0.36
Spatial sampling (µm)^[1]	0.88	0.44	0.18
Optical resolution (µm)^[2]	0.51	0.38	0.28
Vertical resolution (nm)^[4]	1	1	1

Computer & Operating System

Computer	HP Z220 SFF, HP display 2560×1440 pixels
Computer Dimensions (WxDxH)	338x381x100 mm
Monitor Dimensions (WxDxH)	614x218x534 mm (with stand)
Operating System	Windows 10, 64 bits

Data management

Depending on the intended use, the Q vix can be operated in three different environments: Development, Quality Assurance (QA) and Production. Each environment has its own databases.
Data is organized in three different categories:
1 System Databases containing User data and System configuration files
2 Stent Inspection Databases containing Stent Model data, Defect libraries and Acquisition, Analysis and Report recipes
3 Inspection Results
